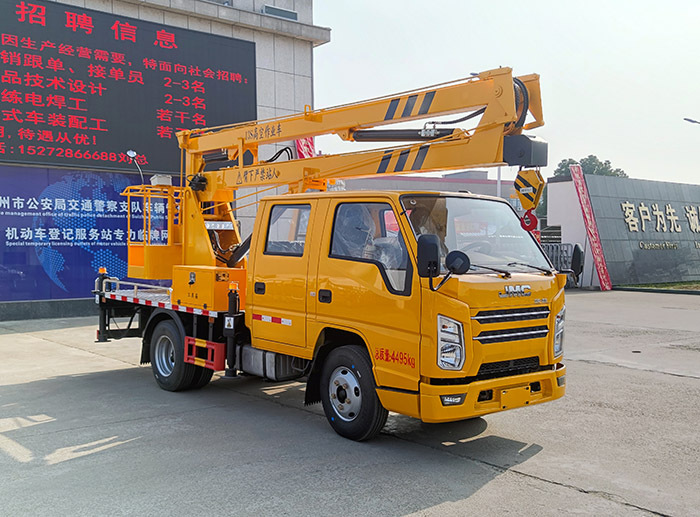

Jiangling 2-axle aerial work platform truck
Category:Aerial work vehicle
该车主要用于抢修电力,通讯,路灯等高空作业,专用装置为升降平台和作业臂.整车长/前伸/前悬/轴距/后悬/后伸对应关系(mm):7625/900/1075(1095)/3360/1990(1970)/300,7855/1000/1075(1095)/3360/2...
Sufficient stock available
A large fleet of specialized vehicles is available for fast delivery!
Delivery time
In-stock vehicles can be delivered within 1-3 days; customized models will be delivered according to the contract timeframe!
| Main technical parameters | |||
|---|---|---|---|
| Product Name: | Jiangling 2-axle aerial work platform truck | ||
| External dimensions: | 7855,7625×2000×3020(mm) | ||
| Emission levels: | National VI | ||
| Cargo box dimensions: | ××(mm) | ||
| Total mass: | 5695(Kg) | ||
| Approach/Departure Angle: | 20/13(°) | ||
| Rated weight: | (Kg) | ||
| Front overhang and rear overhang: | 1075/1990,1075/2120,1095/1970,1095/2100(mm) | ||
| Curb weight: | 5370(Kg) | ||
| Maximum speed: | 100(km/h) | ||
| Chassis parameters | |||
| Fuel type: | diesel fuel | ||
| Chassis model: | JX1061TSGA26 | ||
| Number of axes: | 2 | ||
| Front track: | 1385,1370,1415(mm) | ||
| Wheelbase: | 3360(mm) | ||
| Rear track: | 1425,1440(mm) | ||
| Number of passengers in the driver's cab: | (people) | ||
| Number of leaf springs: | 7/5+6,4/5+6,3/5+6,4/5+4,3/5+4,5/5+6,5/5+4,3/1+3,1/1+1,2/1+2,4/1+3,2/1+1,3/1+2,4/3+2,4/3+3,4/3+4,4/4+2,4/4+3,5/3+2,5/3+3,5/3+4,5/4+2,5/4+3,7/3+2,7/3+3,7/3+4,7/4+2,7/4+3,3/3+2,3/4+2,3/4+3,3/5+2,4/5+2,4/4+4,5/4+4,7/4+4,7/5+4 | ||
| Number of tires: | 6 (items) | ||
| Axle load: | 2100/3595 | ||
| Tire specifications: | 7.00R16LT 12PR,7.00R16LT 14PR | ||
| Engine parameters | |||
|---|---|---|---|
| Engine model: | Engine manufacturers | Displacement (ml) | Power (kW) / Horsepower (PS): |
| JX4D30B6H | Jiangling Motors Co., Ltd. | 2892 | 85/115 |
| JX4D30A6H | Jiangling Motors Co., Ltd. | 2892 | 95/129 |
| JX493ZLQ6A | Jiangling Motors Co., Ltd. | 2771 | 90/122 |
| other | |||
|---|---|---|---|
| 该车主要用于抢修电力,通讯,路灯等高空作业,专用装置为升降平台和作业臂.整车长/前伸/前悬/轴距/后悬/后伸对应关系(mm):7625/900/1075(1095)/3360/1990(1970)/300,7855/1000/1075(1095)/3360/2120(2100)/300.侧面防护材料:Q235A碳钢,连接方式:左右侧面防护采用焊接连接.后防护装置材料:Q235A碳钢,连接方式:采用焊接连接.后部防护断面尺寸(mm):200×50,后部防护离地高度(mm):420.ABS系统型号:APG3550500A,ABS系统生产厂家:浙江亚太机电股份有限公司.选装不同外观样式.随底盘选装驾驶室. |
