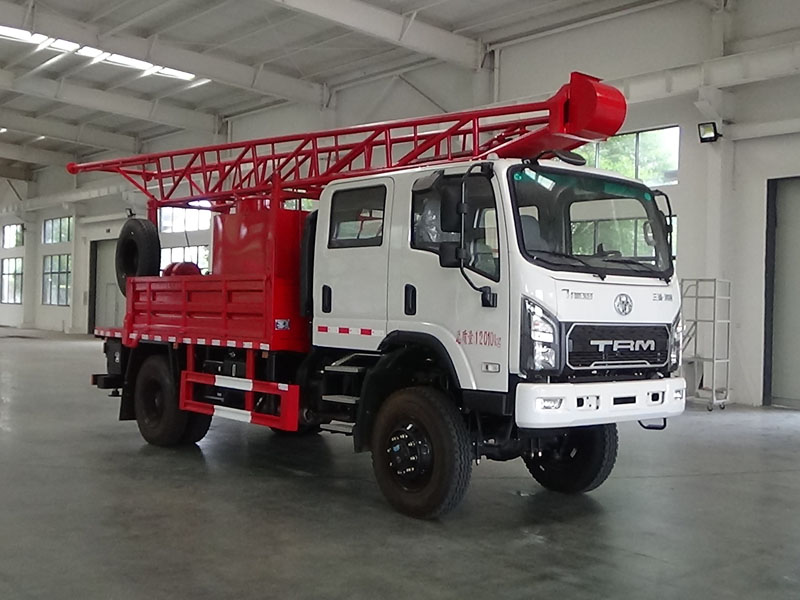

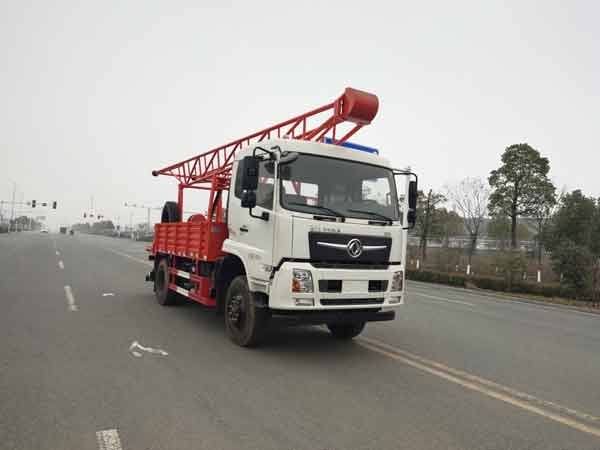

Dongfeng 2-axle drilling rig
Category:Drilling rig
The vehicle is equipped with a specialized system including an air compressor, mud pump, derrick, and transmission system. It is primarily used for oilfield field operations, shallow surface drilling in oil wells, engineering geological exploration drilling, and water supply well drilling. Overall vehicle length (mm) = front overhang + wheelbase + rear overhang + rear overhang = 1180 + 4200 + 2070 + 2030 = 9480. Protective material: Q235A carbon steel. Connection method: ...
Sufficient stock available
A large fleet of specialized vehicles is available for fast delivery!
Delivery time
In-stock vehicles can be delivered within 1-3 days; customized models will be delivered according to the contract timeframe!
| Main technical parameters | |||
|---|---|---|---|
| Product Name: | Dongfeng 2-axle drilling rig | ||
| External dimensions: | 9480×2350×3310(mm) | ||
| Emission levels: | National VI | ||
| Cargo box dimensions: | ××(mm) | ||
| Total mass: | 10080(Kg) | ||
| Approach/Departure Angle: | 21/15(°) | ||
| Rated weight: | (Kg) | ||
| Front overhang and rear overhang: | 1180/2070(mm) | ||
| Curb weight: | 9690,9755(Kg) | ||
| Maximum speed: | 105(km/h) | ||
| Chassis parameters | |||
| Fuel type: | diesel fuel | ||
| Chassis model: | EQ2110GSZ6DJ | ||
| Number of axes: | 2 | ||
| Front track: | 1565,1575,1770,1890,1790(mm) | ||
| Wheelbase: | 3400,3600,3800,4200(mm) | ||
| Rear track: | 1575,1590,1805,1800,1700(mm) | ||
| Number of passengers in the driver's cab: | (people) | ||
| Number of leaf springs: | 8/10+8,12/12+9,12/6+7 | ||
| Number of tires: | 6 (items) | ||
| Axle load: | 3525/6555 | ||
| Tire specifications: | 235/75R17.5 16PR,8.25R20 12PR,8.25R20 14PR,8.25R20 16PR,9.00R20 10PR,9.00R20 12PR,9.00R20 14PR,9.00R20 16PR | ||
| Engine parameters | |||
|---|---|---|---|
| Engine model: | Engine manufacturers | Displacement (ml) | Power (kW) / Horsepower (PS): |
| Q25-152E60 | Anhui Quanchai Power Co., Ltd. | 2493 | 112/152 |
| H33-180E60 | Anhui Quanchai Power Co., Ltd. | 3300 | 130/176 |
| YCF25160-66 | Guangxi Yuchai Machinery Co., Ltd. | 2488 | 116/157 |
| Q30A-182E60 | Anhui Quanchai Power Co., Ltd. | 2980 | 132/179 |
| Q25A-162E60 | Anhui Quanchai Power Co., Ltd. | 2496 | 116/157 |
| YCY30180-66 | Guangxi Yuchai Machinery Co., Ltd. | 2970 | 132/179 |
| YCY30200-66 | Guangxi Yuchai Machinery Co., Ltd. | 2970 | 145/197 |
| other | |||
|---|---|---|---|
| The vehicle's special equipment includes: air compressor, mud pump, derrick, and transmission device, etc. It is mainly used for oilfield field operations, shallow surface operations in oilfield wells, engineering geological exploration drilling, and water supply well drilling. The overall vehicle length (mm) = front overhang + wheelbase + rear overhang + rear extension = 1180 + 4200 + 2070 + 2030 = 9480. Protective material: Q235A carbon steel. Connection method: left and right side protection uses bolt + welding connection. Special equipment replaces rear protection. Rear ground clearance (mm): 450. Optional special equipment water tank at the rear of the cab. ABS manufacturer: Dongke Knorr Commercial Vehicle Braking System (Shiyan) Co., Ltd., Zhejiang Wan'an Technology Co., Ltd., Model: 3631010-C2000, VIE ABS-Ⅱ. The cab is optional with the chassis. |
