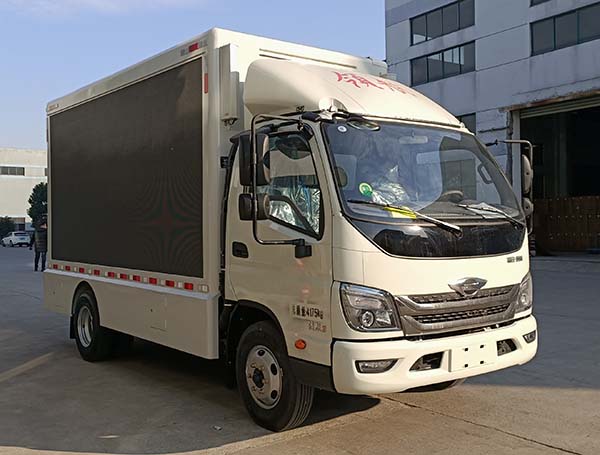

Qingling 2-axle advertising vehicle
Category:LED advertising truck
This vehicle is a specialized vehicle for advertising and science popularization. Its specialized equipment includes a generator, computer, and LED screen. It comprises a generator, computer, amplifier, and video processor, forming a promotional platform. The roof of the vehicle is sealed and cannot be opened. Side and rear protection is replaced by the vehicle body structure, with the lower edge of the rear protection at a ground clearance of 485mm. ABS and its controller model/manufacturer information is available upon request...
Sufficient stock available
A large fleet of specialized vehicles is available for fast delivery!
Delivery time
In-stock vehicles can be delivered within 1-3 days; customized models will be delivered according to the contract timeframe!
| Main technical parameters | |||
|---|---|---|---|
| Product Name: | Qingling 2-axle advertising vehicle | ||
| External dimensions: | 5995×2040×2990(mm) | ||
| Emission levels: | National VI | ||
| Cargo box dimensions: | ××(mm) | ||
| Total mass: | 4495(Kg) | ||
| Approach/Departure Angle: | 24/15(°) | ||
| Rated weight: | (Kg) | ||
| Front overhang and rear overhang: | 1015/1620(mm) | ||
| Curb weight: | 4365(Kg) | ||
| Maximum speed: | 105(km/h) | ||
| Chassis parameters | |||
| Fuel type: | diesel fuel | ||
| Chassis model: | QL1040BUHAY | ||
| Number of axes: | 2 | ||
| Front track: | 1377,1504(mm) | ||
| Wheelbase: | 3360,3600,2800(mm) | ||
| Rear track: | 1425,1525(mm) | ||
| Number of passengers in the driver's cab: | (people) | ||
| Number of leaf springs: | 3/3+2,8/6+5,1/1+1,3/1+1,2/2+1,2/3+1,2/3+2,3/3+3,3/4+3,3/5+2,3/5+3,6/6+6,7/6+5,7/6+4,3/6+5 | ||
| Number of tires: | 6 (items) | ||
| Axle load: | 1805/2690 | ||
| Tire specifications: | 7.00R16LT 8PR,7.00R16LT 10PR,6.50R16LT 10PR,6.50R15LT 10PR | ||
| Engine parameters | |||
|---|---|---|---|
| Engine model: | Engine manufacturers | Displacement (ml) | Power (kW) / Horsepower (PS): |
| 4KH1CN6LB | Isuzu (China) Engine Co., Ltd. | 2999 | 88/119 |
| 4KK1N6SD | Isuzu (China) Engine Co., Ltd. | 2499 | 97/131 |
| 4KB1-TCG60 | Isuzu (China) Engine Co., Ltd. | 2499 | 96/130 |
| 4KK1N6HD | Isuzu (China) Engine Co., Ltd. | 2499 | 118/160 |
| other | |||
|---|---|---|---|
| This vehicle is a specialized vehicle for advertising and science popularization. Its specialized equipment includes a generator, computer, and LED screen. It comprises a generator, computer, amplifier, and video processor, forming a promotional platform. The top of the vehicle is sealed and cannot be opened. Side and rear protection is replaced by the vehicle body structure, with the lower edge of the rear protection at a ground clearance of 485mm. The corresponding models/manufacturers for the ABS and its controller are: APG3550500A/Zhejiang Asia-Pacific Electromechanical Co., Ltd., CM4YL/Guangzhou Ruili Kemi Automotive Electronics Co., Ltd.; and CM4XL-4S/4M/Guangzhou Ruili Kemi Automotive Electronics Co., Ltd. Optional features include LED screens on the left and right sides and rear, a closed side and rear panel structure, and an LED strip screen. |
