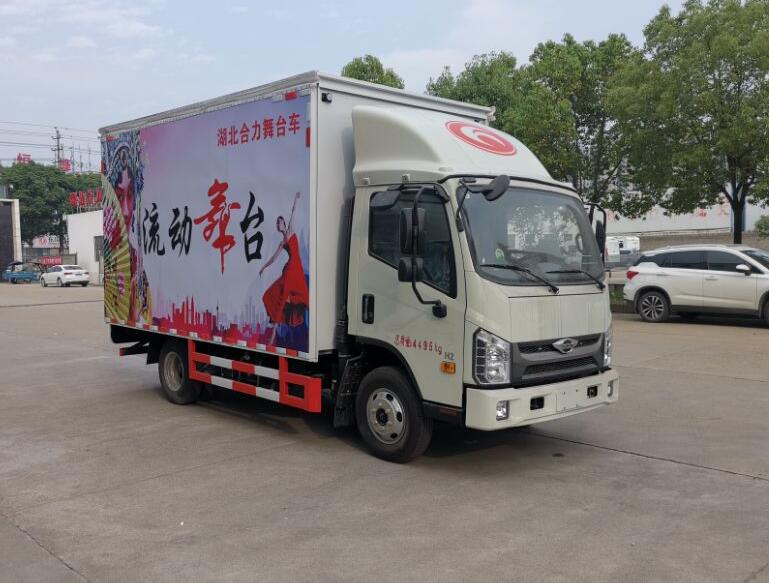

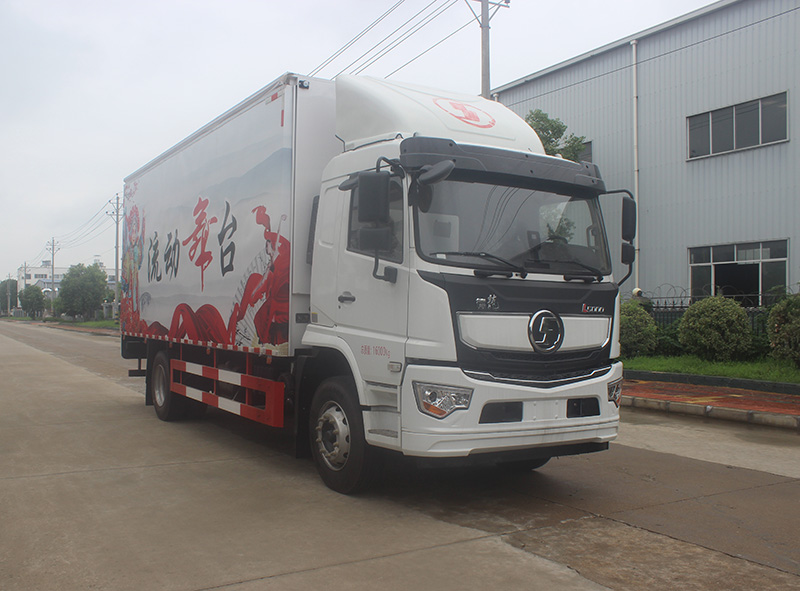

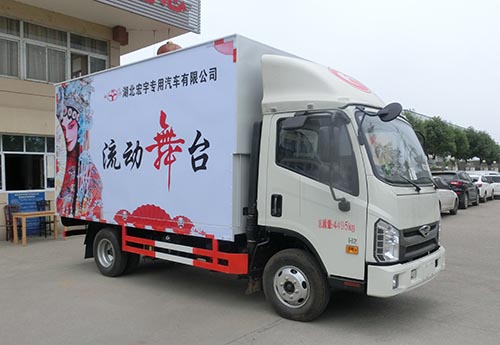

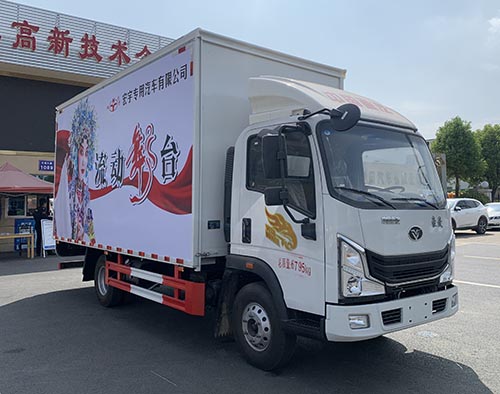

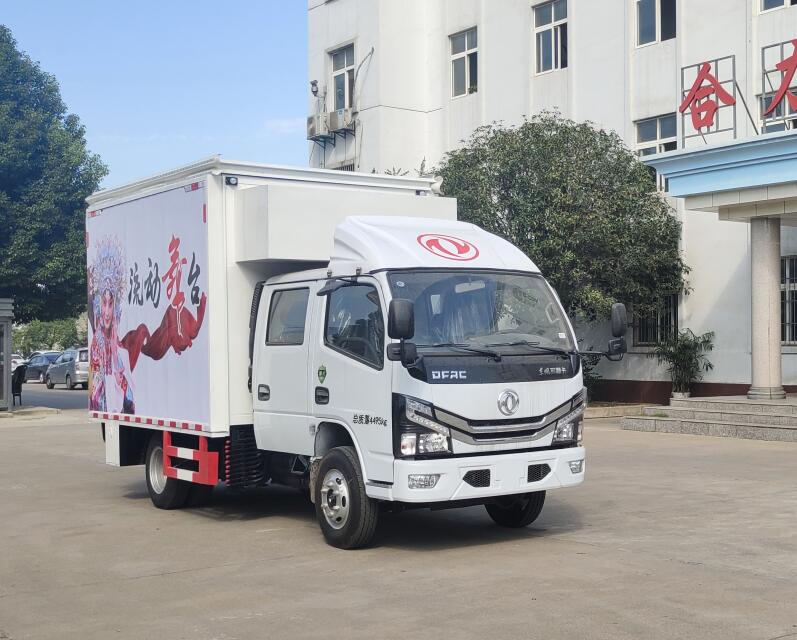

2-axle stage truck
Category:stage truck
This vehicle is a special vehicle for stage performances; special equipment: box body, folding stage. Side protection material: Q235A carbon steel. Connection method: welded connection on both sides. Rear protection device material: Q235A carbon steel. Connection method: bolted connection. Rear protection cross-section dimensions (mm): 100×50, rear protection ground clearance (mm): 380. ABS...
Sufficient stock available
A large fleet of specialized vehicles is available for fast delivery!
Delivery time
In-stock vehicles can be delivered within 1-3 days; customized models will be delivered according to the contract timeframe!
| Main technical parameters | |||
|---|---|---|---|
| Product Name: | 2-axle stage truck | ||
| External dimensions: | 5995×2100,2180,2350,2250×2980,3050,3080(mm) | ||
| Emission levels: | National VI | ||
| Cargo box dimensions: | ××(mm) | ||
| Total mass: | 4495(Kg) | ||
| Approach/Departure Angle: | 18/13(°) | ||
| Rated weight: | (Kg) | ||
| Front overhang and rear overhang: | 1130/1565(mm) | ||
| Curb weight: | 4365,4300(Kg) | ||
| Maximum speed: | 95(km/h) | ||
| Chassis parameters | |||
| Fuel type: | diesel fuel | ||
| Chassis model: | YTQ1041KH331 | ||
| Number of axes: | 2 | ||
| Front track: | 1614,1585,1701,1736,1575,1800(mm) | ||
| Wheelbase: | 3300,2800,3600(mm) | ||
| Rear track: | 1551,1570,1795,1670,1700,1720,1435,1476,1640,1502(mm) | ||
| Number of passengers in the driver's cab: | (people) | ||
| Number of leaf springs: | 3/3+2,7/9+8,3/3+3,3/8+6,3/9+8,7/8+6,3/10+10,3/4+3,1/1+1,2/3+2,2/3+3,2/5+3,3/5+3,7/5+3,3/5+2,1/5+2,1/5+3,1/4+3,2/2+1,2/5+2,3/9+7,10/9+7 | ||
| Number of tires: | 6 (items) | ||
| Axle load: | 1610/2885 | ||
| Tire specifications: | 7.00R16LT 8PR,7.50R16LT 6PR,6.50R16LT 12PR | ||
| Engine parameters | |||
|---|---|---|---|
| Engine model: | Engine manufacturers | Displacement (ml) | Power (kW) / Horsepower (PS): |
| WP2.3NQ130E61 | Weichai Power Co., Ltd. | 2289 | 96/130 |
| WP3NQ140E61 | Weichai Power Co., Ltd. | 2970 | 103/140 |
| WP3NQ160E61 | Weichai Power Co., Ltd. | 2970 | 118/160 |
| WP2.3NQ120E61 | Weichai Power Co., Ltd. | 2289 | 88/119 |
| D20TCIF12 | Kunming Yunnei Power Co., Ltd. | 1999 | 90/122 |
| D20TCIF13 | Kunming Yunnei Power Co., Ltd. | 1999 | 85/115 |
| WP2.5NQ160E61 | Weichai Power Co., Ltd. | 2490 | 118/160 |
| WP2.5NQ150E61 | Weichai Power Co., Ltd. | 2490 | 110/149 |
| WP2.3NQ130E61A | Weichai Power Co., Ltd. | 2289 | 96/130 |
| WP2.3NQ120E61A | Weichai Power Co., Ltd. | 2289 | 88/119 |
| WP2.3Q115E62 | Weichai Power Co., Ltd. | 2289 | 85/115 |
| WP2.3Q132E62 | Weichai Power Co., Ltd. | 2289 | 97/131 |
| WP2.3Q140E62 | Weichai Power Co., Ltd. | 2289 | 103/140 |
| WP2.3Q140E62A | Weichai Power Co., Ltd. | 2289 | 103/140 |
| WP2.3NQ150E61 | Weichai Power Co., Ltd. | 2289 | 110/149 |
| WP2.5NQ170E62 | Weichai Power Co., Ltd. | 2493 | 125/170 |
| WP25Q145E62 | Weichai Power Co., Ltd. | 2289 | 105/142 |
| WP25Q151E62 | Weichai Power Co., Ltd. | 2289 | 109/148 |
| other | |||
|---|---|---|---|
| This vehicle is a special vehicle for stage performances; special equipment includes: a box body and a folding stage. Side protection material: Q235A carbon steel. Connection method: welded connection on both sides. Rear protection device material: Q235A carbon steel. Connection method: bolted connection. Rear protection cross-section dimensions (mm): 100×50, rear protection ground clearance (mm): 380. ABS system manufacturers and models are: Guangzhou Ruili Kemi Automotive Electronics Co., Ltd. (Model: CM4XL-4S/4M); Wabco Automotive Control Systems (China) Co., Ltd. (Model: ABS-E 4S/4M). This model only uses engines with a displacement of 2500ml or less. Different rear exterior appearances are optional. The cab is optional with the chassis, and different interior layouts are available. |
Product customization
If you cannot find a suitable product, you can also leave us a message and write down the product configuration you need. We will reply to you within 1-2 business days after receiving your message!
