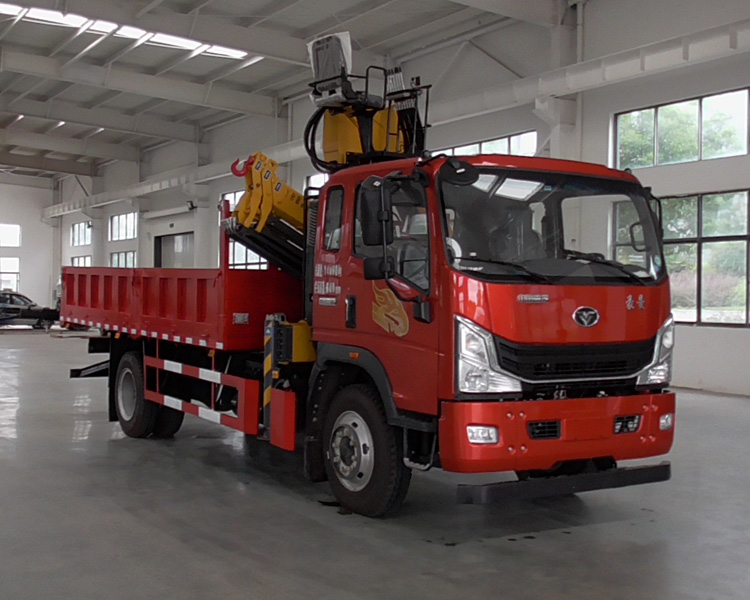

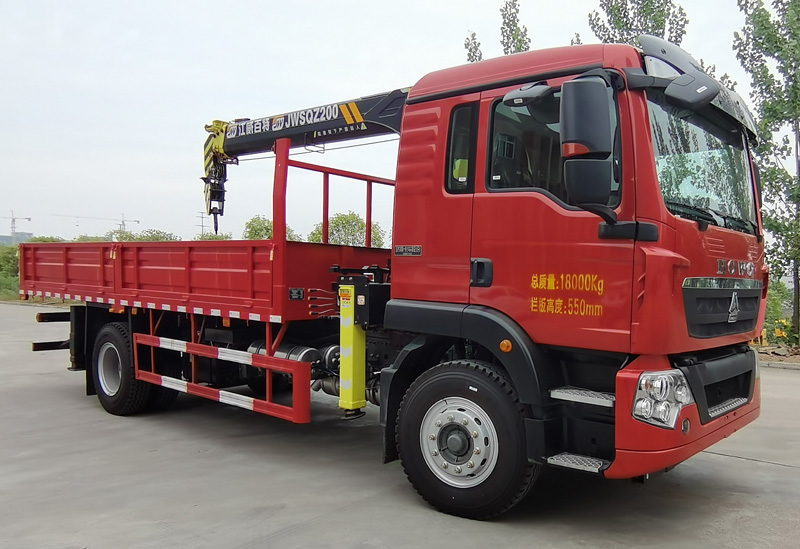

Sinotruk 2-axle truck-mounted crane

chinatruckplant.com

Category:Truck-mounted crane transport vehicle

The vehicle's specialized equipment includes a cargo box and a crane for lifting and transporting goods. The crane model/maximum lifting load (kg)/crane weight (kg) are SQS175/7000/2800 respectively; the side and rear protection is made of Q235 material and welded together, with a rear protection cross-section size of 50×120mm and a rear protection ground clearance of 480mm. The ABS system controller...

Sufficient stock available

A large fleet of specialized vehicles is available for fast delivery!

Delivery time

In-stock vehicles can be delivered within 1-3 days; customized models will be delivered according to the contract timeframe!

Detailed parameters
Product Image Gallery

Main technical parameters
Product Name:	Sinotruk 2-axle truck-mounted crane
External dimensions:	7050,7280,7750,8200×2400,2500×3550,3600,3650,3700(mm)
Emission levels:	National VI
Cargo box dimensions:	4000,4300,4420,4720,5120×2300,2400×550,600(mm)
Total mass:	14060(Kg)
Approach/Departure Angle:	20/16(°)
Rated weight:	5430,5365,6130,6065(Kg)
Front overhang and rear overhang:	1240/2010,1240/2140,1240/2310,1240/2460(mm)
Curb weight:	8500,7800(Kg)
Maximum speed:	89(km/h)
Chassis parameters
Fuel type:	diesel fuel
Chassis model:	ZZ1148G17FB0
Number of axes:	2
Front track:	1605,1625,1795,1825,1770(mm)
Wheelbase:	3800,3900,4200,4500,4700(mm)
Rear track:	1595,1615,1695,1790,1725,1750(mm)
Number of passengers in the driver's cab:	(people)
Number of leaf springs:	3/5+3,8/9+6,11/9+7,9/12+9,11/11+7,9/10+8,3/3+2,3/5+2,3/3+4,9/11+8
Number of tires:	6 (items)
Axle load:	4860/9200
Tire specifications:	8.25R20 16PR,9.00R20 16PR,10R22.5 16PR

Engine parameters
Engine model:	Engine manufacturers	Displacement (ml)	Power (kW) / Horsepower (PS):
WP4.1NQ190E61	Weichai Power Co., Ltd.	4088	140/190
WP3NQ220E62	Weichai Power Co., Ltd.	2970	162/220
WP3NQ210E62	Weichai Power Co., Ltd.	2970	147/199
WP3NQ200E62	Weichai Power Co., Ltd.	2970	147/199
WP4.6NQ220E62	Weichai Power Co., Ltd.	4580	162/220
WP3NQ170E62	Weichai Power Co., Ltd.	2970	125/170
WP5NQ245E62	Weichai Power Co., Ltd.	4580	177/240
WP4.6NQ240E62	Weichai Power Co., Ltd.	4580	177/240

other
The vehicle's specialized equipment includes a cargo box and a crane for lifting and transporting goods. The crane model/maximum lifting load (kg)/crane weight (kg) are: SQS175/7000/2800. The side and rear protection is made of Q235 material and welded together. The rear protection cross-section dimensions are 50×120mm, and the rear protection ground clearance (mm) is 480. The ABS system controller model/manufacturer correspondence is: CM3XL-4S/3M(4SF)/Guangzhou Ruili Kemi Automotive Electronics Co., Ltd.; XH-KQ4S3M-E01/Guangzhou Xihe Automotive Electronics Equipment Co., Ltd. The vehicle is equipped with a driving recorder with satellite positioning function. The engine/fuel consumption value (L/100km) correspondence is: D40TCIF1/W The declared fuel consumption (L/100km) of the P4.1NQ190E61 engine is 23.2. Optional features include: box-type structure, upper and middle seat operation, and rear outriggers. The cab is optional with the chassis. Optional features include: direct-powered ETC on-board unit, optional base style, and optional outriggers. Different paint colors and patterns are available for the crane. The optional crane models/maximum lifting load (kg)/crane weight (kg) are: Changxing SQS125/5000/2300, SQZ126/6300/2800, Changxing SQS157/6300/2300, SQS157/6300/2800, Sany SPS16000/6300/2800, and Shimei QYS-6.3IIIA/6300/2800.
