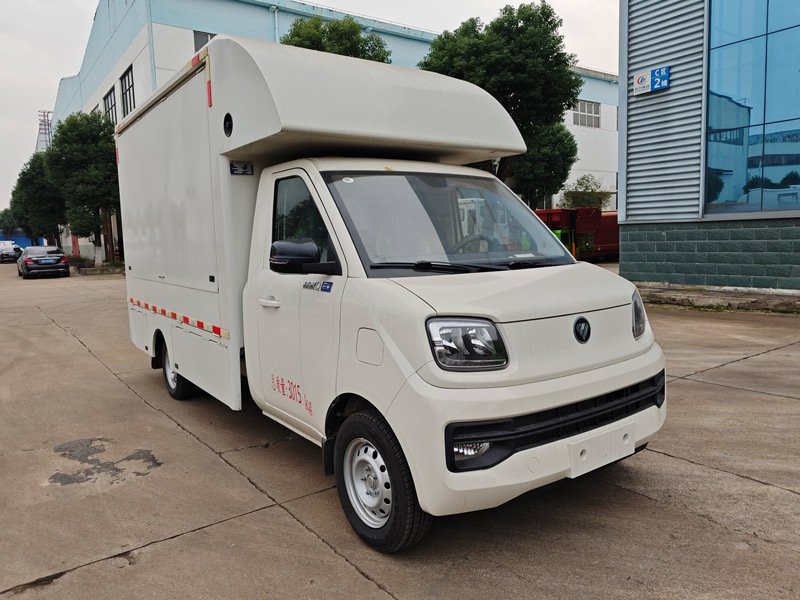

2-axle pure electric vending truck
Category:vending truck/food truck
Energy storage device type/cell manufacturer/assembly manufacturer: Lithium iron phosphate battery/Jiangxi Anchi New Energy Technology Co., Ltd./Zhejiang Yuancheng Zhixin Technology Co., Ltd.; 2. Correspondence between drive motor model/rated power/peak power/drive motor controller model: TZ180XSZX01/30kW/60kW/KTZ34X23SZX01,TZ180...
Sufficient stock available
A large fleet of specialized vehicles is available for fast delivery!
Delivery time
In-stock vehicles can be delivered within 1-3 days; customized models will be delivered according to the contract timeframe!
| Main technical parameters | |||
|---|---|---|---|
| Product Name: | 2-axle pure electric vending truck | ||
| External dimensions: | 5340×1870×2700(mm) | ||
| Emission levels: | — | ||
| Cargo box dimensions: | 3190×1770×1800(mm) | ||
| Total mass: | 2995(Kg) | ||
| Approach/Departure Angle: | 30/12(°) | ||
| Rated weight: | 1135(Kg) | ||
| Front overhang and rear overhang: | 635/1345(mm) | ||
| Curb weight: | 1730(Kg) | ||
| Maximum speed: | 90(km/h) | ||
| Chassis parameters | |||
| Fuel type: | pure electric | ||
| Chassis model: | ZB1032BEVGDD6 | ||
| Number of axes: | 2 | ||
| Front track: | 1500(mm) | ||
| Wheelbase: | 3360(mm) | ||
| Rear track: | 1457(mm) | ||
| Number of passengers in the driver's cab: | (people) | ||
| Number of leaf springs: | -/5 | ||
| Number of tires: | 4 (items) | ||
| Axle load: | 1295/1700 | ||
| Tire specifications: | 185R14LT 8PR | ||
| Engine parameters | |||
|---|---|---|---|
| Engine model: | Engine manufacturers | Displacement (ml) | Power (kW) / Horsepower (PS): |
| TZ180XSZX01 | Zhejiang Remote Intelligent Chip Technology Co., Ltd. | - | 60/81 |
| TZ180XSZX05 | Huzhou Zhixin Power System Development Co., Ltd. | 70/95 | |
| other | |||
|---|---|---|---|
| Energy storage device type/single cell manufacturer/assembly manufacturer: Lithium iron phosphate battery/Jiangxi Anchi New Energy Technology Co., Ltd./Zhejiang Yuancheng Zhixin Technology Co., Ltd.; 2. Correspondence between drive motor model/rated power/peak power/drive motor controller model: TZ180XSZX01/30kW/60kW/KTZ34X23SZX01, TZ180XSZX05/35kW/70kW/KTZ34X23SZX05. ABS model/manufacturer: CM0953YL/Guangzhou Ruili Kemi Automotive Electronics Co., Ltd., ABS9.2/Tianjin Yingchuang Huizhi Automotive Technology Co., Ltd., RL-108/Wenzhou Ruili Kemi Automotive Electronics Co., Ltd. Car Electronics Co., Ltd. This model can be equipped with a direct-powered ETC on-board unit; the top of the cargo box is closed and cannot be opened, but the windows on three sides of the cargo box can be opened manually; the vehicle is equipped with special equipment such as counters for mobile vending; side-opening door and rear-opening door styles are optional; the accessories corresponding to the curb weight are as follows: including vehicle tools, excluding spare tire and fire extinguisher; cargo box material: floor (Q235A), side/front/rear/top (composite material), cargo box material section thickness (mm): floor (3.0), side/front/rear/top (35), cargo box weight (kg): 410. Optional box style, optional fairing lettering; optional black edge for the front windshield. Optional side-opening door, optional rear-opening door. |
Product customization
If you cannot find a suitable product, you can also leave us a message and write down the product configuration you need. We will reply to you within 1-2 business days after receiving your message!
