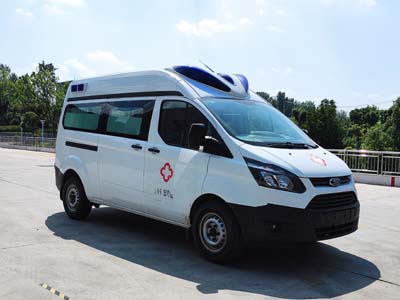

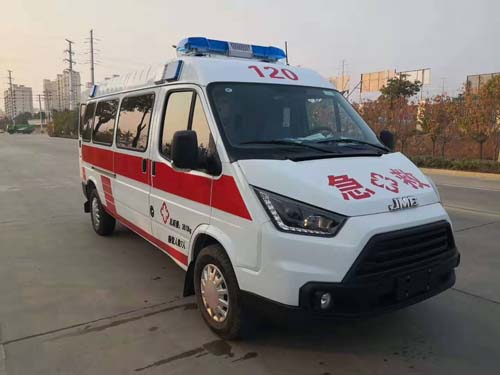

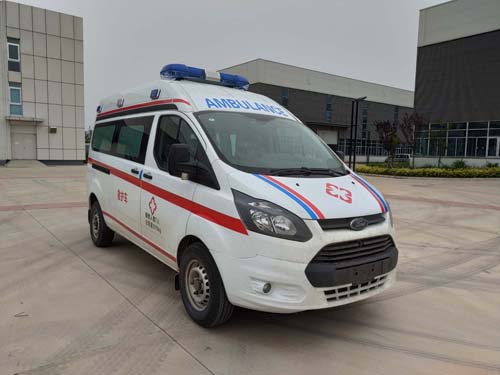

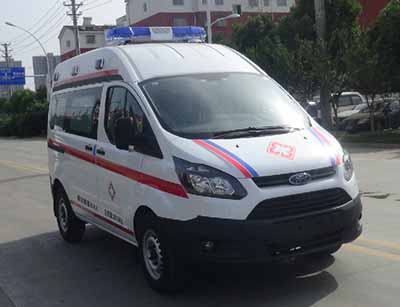

Jiangling 2-axle ambulance
This vehicle is equipped with specialized devices such as a medical equipment cabinet, oxygen cylinders, stretcher, disinfection lamp, warning lights, and sirens. Optional features include: wheel rims, front grille, side steps, side windows, and rear badging. Single or multiple flashing warning lights can be installed around the roof. With the optional I-shaped or irregularly shaped warning lights at the front (forehead position): vehicle height (mm): 2460; with the optional I-shaped warning lights at the roof (roof position): vehicle height (mm): 261...
Sufficient stock available
A large fleet of specialized vehicles is available for fast delivery!
Delivery time
In-stock vehicles can be delivered within 1-3 days; customized models will be delivered according to the contract timeframe!
| Main technical parameters | |||
|---|---|---|---|
| Product Name: | Jiangling 2-axle ambulance | ||
| External dimensions: | 5341,5521×2032,2079×2460,2610,2280(mm) | ||
| Emission levels: | National VI | ||
| Cargo box dimensions: | ××(mm) | ||
| Total mass: | 3300(Kg) | ||
| Approach/Departure Angle: | 21/25(°) | ||
| Rated weight: | (Kg) | ||
| Front overhang and rear overhang: | 1014/1027,1014/1207(mm) | ||
| Curb weight: | 2460(Kg) | ||
| Maximum speed: | 156.100(km/h) | ||
| Chassis parameters | |||
| Fuel type: | gasoline | ||
| Chassis model: | JX6533PA-M6 | ||
| Number of axes: | 2 | ||
| Front track: | 1736(mm) | ||
| Wheelbase: | 3300(mm) | ||
| Rear track: | 1720(mm) | ||
| Number of passengers in the driver's cab: | 5-9 people | ||
| Number of leaf springs: | -/1,-/2 | ||
| Number of tires: | 4 (items) | ||
| Axle load: | 1505/1795 | ||
| Tire specifications: | 215/65R16C,215/75R16LT | ||
| Engine parameters | |||
|---|---|---|---|
| Engine model: | Engine manufacturers | Displacement (ml) | Power (kW) / Horsepower (PS): |
| ECOBOOST4G20B6L | Jiangling Motors Co., Ltd. | 1997 | 149/202 |
| other | |||
|---|---|---|---|
| This vehicle is equipped with specialized devices such as a medical equipment cabinet, oxygen cylinders, stretcher, disinfection lamp, warning lights, and sirens. Optional features include: wheel rims, front grille, side steps, side windows, and rear badging. Single or multiple flashing warning lights can be installed around the roof. With optional I-shaped or irregularly shaped warning lights at the front (forehead position): vehicle height (mm): 2460; with optional I-shaped warning lights at the roof position: vehicle height (mm): 2610; with optional side steps: width (mm): 2079; with optional roof trim and rear spoiler: height (mm): 2460; with optional tailgate and step: vehicle length (mm): 5521; ABS system controller model: EV5051, manufacturer: Bosch Automotive Components (Suzhou) Co., Ltd.; maximum net engine power: 147kW. This model can be equipped with an ETC on-board unit. Optional exterior styling. This vehicle is equipped with an Event Data Recording (EDR) system. |
Product customization
If you cannot find a suitable product, you can also leave us a message and write down the product configuration you need. We will reply to you within 1-2 business days after receiving your message!
