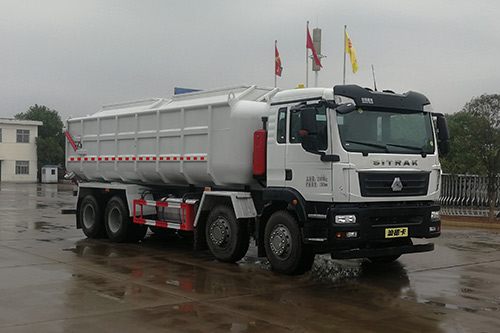

Sinotruk 4-axle sludge dump truck
Category:Dump truck
Primarily used for transporting sludge, with rear-discharge unloading; different box exteriors and rear appearance styles are available as options; the cab exterior style and rear-processor appearance and location are selectable with the chassis; different styles of side mirrors and different types of steps are also available; a cab-top antenna is optional; the wheelbase/front overhang/rear overhang correspondences are (mm): 1950+3525+1350/1500/...
Sufficient stock available
A large fleet of specialized vehicles is available for fast delivery!
Delivery time
In-stock vehicles can be delivered within 1-3 days; customized models will be delivered according to the contract timeframe!
| Main technical parameters | |||
|---|---|---|---|
| Product Name: | Sinotruk 4-axle sludge dump truck | ||
| External dimensions: | 9850×2550×3450(mm) | ||
| Emission levels: | National VI | ||
| Cargo box dimensions: | 6450×2100,2300×1250,1500(mm) | ||
| Total mass: | 31000(Kg) | ||
| Approach/Departure Angle: | 17/18,17/15,17/16(°) | ||
| Rated weight: | 15370(Kg) | ||
| Front overhang and rear overhang: | 1500/1525,1430/1745,1430/1720(mm) | ||
| Curb weight: | 15500(Kg) | ||
| Maximum speed: | 80(km/h) | ||
| Chassis parameters | |||
| Fuel type: | diesel fuel | ||
| Chassis model: | ZZ3317V386GF1 | ||
| Number of axes: | 4 | ||
| Front track: | 2022/2022,2041/2041(mm) | ||
| Wheelbase: | 1950+2325+1350,1950+2525+1350,1950+2825+1350,1950+3025+1350,1950+3225+1350,1950+3525+1350,1950+3825+1350,1800+2325+1350,1800+2300+1400,1800+2525+1350,1800+2500+1400,1800+2825+1350,1800+2800+1400,1800+3025+1350,1800+3000+1400,1800+3225+1350,1800+3200+1400,(mm) | ||
| Rear track: | 1860/1860(mm) | ||
| Number of passengers in the driver's cab: | (people) | ||
| Number of leaf springs: | 4/4/12,11/11/12,11/11/10,4/4/-,11/11/-,5/5/5,5/5/-,4/4/5,4/4/10,5/5/10,7/7/10,9/9/10,9/9/12,3/3/4,10/10/12 | ||
| Number of tires: | 12 (items) | ||
| Axle load: | 6500/7000/17500 (Two-axis set) | ||
| Tire specifications: | 11.00R20,12.00R20 18PR,12R22.5,295/80R22.5,315/80R22.5 18PR,13R22.5 18PR | ||
| Engine parameters | |||
|---|---|---|---|
| Engine model: | Engine manufacturers | Displacement (ml) | Power (kW) / Horsepower (PS): |
| MC11.40-60 | China National Heavy Duty Truck Group Co., Ltd. | 10518 | 297/403 |
| MC11.43-61 | China National Heavy Duty Truck Group Co., Ltd. | 10518 | 319/433 |
| WP10H400E62 | Weichai Power Co., Ltd. | 9500 | 294/399 |
| MC11.44-60 | China National Heavy Duty Truck Group Co., Ltd. | 10518 | 327/444 |
| MC11.46-61 | China National Heavy Duty Truck Group Co., Ltd. | 10518 | 341/463 |
| MC11.40-61 | China National Heavy Duty Truck Group Co., Ltd. | 10518 | 297/403 |
| MC07.33-60 | China National Heavy Duty Truck Group Co., Ltd. | 6870 | 240/326 |
| WP8.350E61 | Weichai Power Co., Ltd. | 7800 | 257/349 |
| MC09.38-60 | China National Heavy Duty Truck Group Co., Ltd. | 8765 | 279/379 |
| WP9H350E62 | Weichai Power Co., Ltd. | 8800 | 257/349 |
| MC07H.35-60 | China National Heavy Duty Truck Group Co., Ltd. | 7360 | 257/349 |
| WP10.5H430E62 | Weichai Power Co., Ltd. | 10520 | 316/429 |
| WP10.5H460E62 | Weichai Power Co., Ltd. | 10520 | 338/459 |
| WP12.430E62 | Weichai Power Co., Ltd. | 11596 | 316/429 |
| WP12.460E62 | Weichai Power Co., Ltd. | 11596 | 338/459 |
| WP12.490E62 | Weichai Power Co., Ltd. | 11596 | 360/489 |
| WP10H375E62 | Weichai Power Co., Ltd. | 9500 | 276/375 |
| WP12.400E62 | Weichai Power Co., Ltd. | 11596 | 294/399 |
| WP8.350E62 | Weichai Power Co., Ltd. | 7800 | 257/349 |
| WP8H360E62 | Weichai Power Co., Ltd. | 8240 | 265/360 |
| WP8H360E62A | Weichai Power Co., Ltd. | 8240 | 265/360 |
| WP8H360E62 | Weichai Power Co., Ltd. | 8240 | 265/360 |
| other | |||
|---|---|---|---|
| Mainly used for transporting sludge, with rear-discharge unloading; different box exteriors and rear exterior styles are optional; the cab exterior style and the appearance and position of the after-processor are optional with the chassis; different styles of side mirrors and different types of steps are optional; the cab roof antenna is optional; the wheelbase/front overhang/rear overhang correspondences are (mm): 1950+3525+1350/1500/1525; 1800+3525+1350/1430/1745; 1800+3500+1400/1430/1720; the side and rear protection device material is Q23. 5B, both side and rear protection are bolted connections; the rear protection device cross-sectional dimensions (mm): 80×150; the rear protection ground clearance: 500mm; a driving recorder with satellite positioning function is installed; the ABS system controller manufacturer/model is WABCO (Shanghai) Management Co., Ltd./4460046300; the engine/fuel consumption values (L/100km) correspondence is: MC11.40-60(37.1), MC11.44-60(37.1), MC11.40-61(37.2), MC11.43-61(37.2). MC11.46-61(37.2), MC07.33-60(37.1), MC07H.35-60(37.1), MC09.38-60(36.8), WP8.350E61(37.1), WP9H350E62(36.8), WP10H400E62(37.2), WP10.5H430E62(37.3), WP10.5H460E62(37.3); This model can be equipped with a direct-powered ETC on-board unit. |
