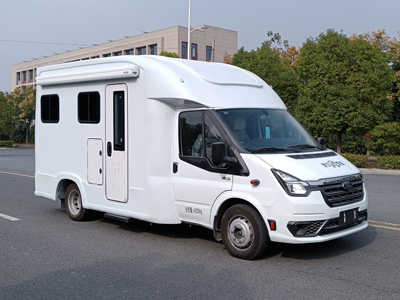

Jiangling 2-axle motorhome
Category:RV
ABS Model: 6C112M110A*, CC11 2C405 A*, EV7021; ABS Manufacturer: Bosch Automotive Components (Suzhou) Co., Ltd.; Engine Net Power: DURATOR Q4D226H engine net power 101kw; Optional Features: Mechanical or electric pedals, headlights, taillights, license plate bracket, side door sills...
Sufficient stock available
A large fleet of specialized vehicles is available for fast delivery!
Delivery time
In-stock vehicles can be delivered within 1-3 days; customized models will be delivered according to the contract timeframe!
| Main technical parameters | |||
|---|---|---|---|
| Product Name: | Jiangling 2-axle motorhome | ||
| External dimensions: | 5780,5820×1974×2890,2720,2590(mm) | ||
| Emission levels: | National VI | ||
| Cargo box dimensions: | ××(mm) | ||
| Total mass: | 3700(Kg) | ||
| Approach/Departure Angle: | 22/24,19/24(°) | ||
| Rated weight: | (Kg) | ||
| Front overhang and rear overhang: | 933/1097,973/1097(mm) | ||
| Curb weight: | 3280(Kg) | ||
| Maximum speed: | 145,100(km/h) | ||
| Chassis parameters | |||
| Fuel type: | diesel fuel | ||
| Chassis model: | JX6580TA-M6 | ||
| Number of axes: | 2 | ||
| Front track: | 1740(mm) | ||
| Wheelbase: | 3750(mm) | ||
| Rear track: | 1704(mm) | ||
| Number of passengers in the driver's cab: | 4-6 people | ||
| Number of leaf springs: | -/2 | ||
| Number of tires: | 4 (items) | ||
| Axle load: | 1670/2030 | ||
| Tire specifications: | 215/75R16LT | ||
| Engine parameters | |||
|---|---|---|---|
| Engine model: | Engine manufacturers | Displacement (ml) | Power (kW) / Horsepower (PS): |
| DURATORQ4D226H | Jiangling Motors Co., Ltd. | 2198 | 103/140 |
| other | |||
|---|---|---|---|
| ABS Model: 6C112M110A*, CC11 2C405 A*, EV7021; ABS Manufacturer: Bosch Automotive Components (Suzhou) Co., Ltd.; Engine Net Power: DURATOR Q4D226H engine net power 101kw; Optional Features: Mechanical or electric pedals, headlights, taillights, license plate bracket, no English trim strips on both sides of the doors, rear exterior markings, body-colored rearview mirrors, body-colored door handles and keyholes, side sliding windows, ECU speed limiter (maximum speed limited to 100km/h); The vehicle is equipped with bedding, cooking utensils, sanitary facilities, and other special equipment. Optional roof-mounted air conditioner and ventilation fan: Overall height (mm) with roof-mounted air conditioner: 2890; Overall height (mm) with ventilation fan: 2720; Overall height (mm) without either: 2590. Length/Front overhang/Approach angle correspondence: Overall length (mm)/Front overhang (mm)/Approach angle (°) with optional front fascia: 5820/973/19; Overall length (mm)/Front overhang (mm)/Approach angle (°) without optional front fascia: 5780/933/22. Optional rear ladder, bicycle rack, and ETC are available. Horizontal length (mm) of the tailgate and ramps (or similar devices) in retracted state: M/A. Other notes: Fuel consumption: 8.1L/100km for manual transmission, 8.3L/100km for automatic transmission; Front fascia optional with chassis. |
Product customization
If you cannot find a suitable product, you can also leave us a message and write down the product configuration you need. We will reply to you within 1-2 business days after receiving your message!
