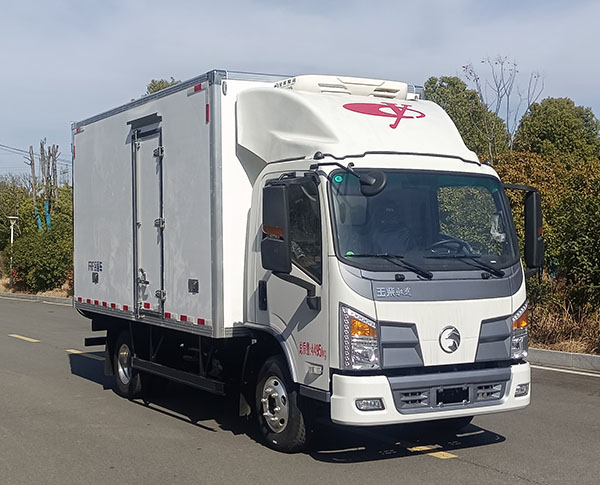

2-axle pure electric refrigerated truck
Category:Refrigerated truck
The top of the cargo box is sealed and cannot be opened; the driver's area and cargo compartment are effectively separated by a rigid panel partition; the energy storage unit is a lithium iron phosphate battery; the manufacturer of the energy storage unit/assembly is Chongqing Fudi Lithium Battery Co., Ltd./Fudi Battery Co., Ltd.; the rated power/peak power of the TZ180XSC110 drive motor is 55kW/110kW; the ABS model and production...
Sufficient stock available
A large fleet of specialized vehicles is available for fast delivery!
Delivery time
In-stock vehicles can be delivered within 1-3 days; customized models will be delivered according to the contract timeframe!
| Main technical parameters | |||
|---|---|---|---|
| Product Name: | 2-axle pure electric refrigerated truck | ||
| External dimensions: | 5430×1760×2065,2195,2370(mm) | ||
| Emission levels: | — | ||
| Cargo box dimensions: | 2850,2695×1560,1450×1420,1350,1300,1220(mm) | ||
| Total mass: | 3000(Kg) | ||
| Approach/Departure Angle: | 24/18(°) | ||
| Rated weight: | 960(Kg) | ||
| Front overhang and rear overhang: | 753/1297(mm) | ||
| Curb weight: | 1910(Kg) | ||
| Maximum speed: | 90(km/h) | ||
| Chassis parameters | |||
| Fuel type: | pure electric | ||
| Chassis model: | GXA5030XXYBEVC5 | ||
| Number of axes: | 2 | ||
| Front track: | 1438(mm) | ||
| Wheelbase: | 3380(mm) | ||
| Rear track: | 1527(mm) | ||
| Number of passengers in the driver's cab: | (people) | ||
| Number of leaf springs: | -/6 | ||
| Number of tires: | 4 (items) | ||
| Axle load: | 1100/1900 | ||
| Tire specifications: | 195/70R15LT 12PR | ||
| Engine parameters | |||
|---|---|---|---|
| Engine model: | Engine manufacturers | Displacement (ml) | Power (kW) / Horsepower (PS): |
| TZ180XSC110 | Liuzhou Wuling Automobile Industry Co., Ltd. | - | 110/149 |
| other | |||
|---|---|---|---|
| The top of the cargo box is sealed and cannot be opened; the driver's area and the cargo compartment are effectively separated by a rigid plate-type isolation device; the energy storage device is a lithium iron phosphate battery; the manufacturer of the energy storage device unit/assembly is Chongqing Fudi Lithium Battery Co., Ltd./Fudi Battery Co., Ltd.; the rated power/peak power of the TZ180XSC110 drive motor is 55kW/110kW; the ABS model and manufacturer is YC-ABS-L/Tianjin Yingchuang Huizhi Automotive Technology Co., Ltd.; this model is optional with a direct-powered ETC on-board unit; optional low roof; optional different appearance rear door hinges; optional refrigeration unit installed in the front compartment of the driver's cab, not on the top of the cargo box; optional internal structure. |
Product customization
If you cannot find a suitable product, you can also leave us a message and write down the product configuration you need. We will reply to you within 1-2 business days after receiving your message!
