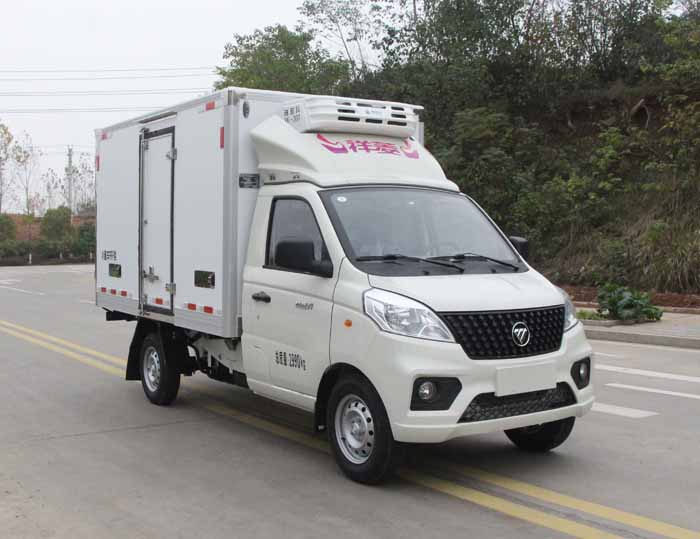

Foton 2-axle refrigerated truck
Category:Refrigerated truck
该车用于冷藏运输的厢式汽车,装备有隔热结构的车厢和制冷装置;货厢顶部封闭,不可开启.ABS系统控制方式是双参数控制,ABS系统控制器型号是YF9,ABS系统控制器生产企业是武汉元丰汽车电控系统有限公司.发动机DAM15KR,DAM16KR分别对应的最大净功率为...
Sufficient stock available
A large fleet of specialized vehicles is available for fast delivery!
Delivery time
In-stock vehicles can be delivered within 1-3 days; customized models will be delivered according to the contract timeframe!
| Main technical parameters | |||
|---|---|---|---|
| Product Name: | Foton 2-axle refrigerated truck | ||
| External dimensions: | 4960,5360×1720,1790×2190,2515,2610(mm) | ||
| Emission levels: | National VI | ||
| Cargo box dimensions: | 2795,3050×1545,1630×1670,1535(mm) | ||
| Total mass: | 2990(Kg) | ||
| Approach/Departure Angle: | 34/19,34/18,34/17(°) | ||
| Rated weight: | 1300(Kg) | ||
| Front overhang and rear overhang: | 605/1285,605/1585(mm) | ||
| Curb weight: | 1560(Kg) | ||
| Maximum speed: | 100,110(km/h) | ||
| Chassis parameters | |||
| Fuel type: | gasoline | ||
| Chassis model: | BJ1030V4JV5-01 | ||
| Number of axes: | 2 | ||
| Front track: | 1338(mm) | ||
| Wheelbase: | 3070,3170(mm) | ||
| Rear track: | 1375,1455(mm) | ||
| Number of passengers in the driver's cab: | (people) | ||
| Number of leaf springs: | -/5 | ||
| Number of tires: | 4 (items) | ||
| Axle load: | 1450/1540 | ||
| Tire specifications: | 175R14LT 8PR | ||
| Engine parameters | |||
|---|---|---|---|
| Engine model: | Engine manufacturers | Displacement (ml) | Power (kW) / Horsepower (PS): |
| DAM15KR | Harbin Dong'an Automotive Power Co., Ltd. | 1498 | 85/115 |
| DAM16KR | Harbin Dong'an Automotive Power Co., Ltd. | 1597 | 90/122 |
| other | |||
|---|---|---|---|
| 该车用于冷藏运输的厢式汽车,装备有隔热结构的车厢和制冷装置;货厢顶部封闭,不可开启.ABS系统控制方式是双参数控制,ABS系统控制器型号是YF9,ABS系统控制器生产企业是武汉元丰汽车电控系统有限公司.发动机DAM15KR,DAM16KR分别对应的最大净功率为80kW,85kW,分别对应最高车速100km/h,110km/h.发动机与油耗申报值(L/100km)对应关系为:DAM15KR/8.1,DAM16KR/7.5;选装直接供电式ETC车载装置.随底盘选装新前格栅和不带导流罩.选装侧门样式,选装后部样式;选装同等功率制冷机组,外观形状可不同.该车型整备质量包含备胎、灭火器、随车工具.货厢重量为485kg,底板材质为玻璃钢+挤塑聚苯乙烯,厚度为79mm,侧板材质为玻璃钢+挤塑聚苯乙烯,厚度为79mm.选装厢体无侧门样式.选装新前格栅,选装不带昼行灯,选装带昼行灯.随底盘选装驾驶室. |
Product customization
If you cannot find a suitable product, you can also leave us a message and write down the product configuration you need. We will reply to you within 1-2 business days after receiving your message!
