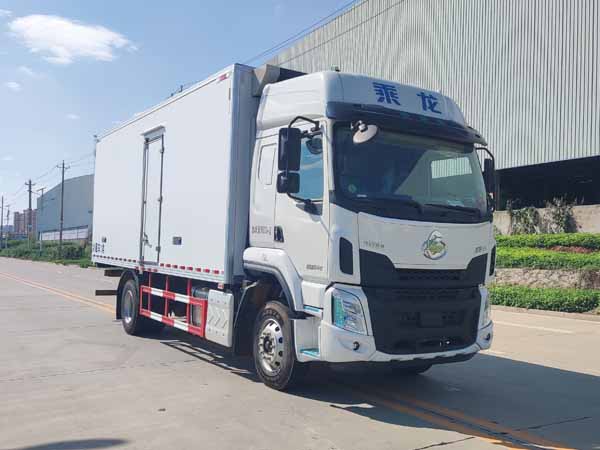

Liuzhou Motor 2-axle refrigerated truck
Category:Refrigerated truck
车厢顶部封闭不可开启;选装ETC车载装置;配装具有卫星定位功能的行驶记录仪;ABS型号/企业:ABS-E 4S/4M/威伯科汽车控制系统(中国)有限公司,CM4XL-4S/4M/广州瑞立科密汽车电子股份有限公司,ABS 8/东科克诺尔商用车制动系统(十堰)有限...
Sufficient stock available
A large fleet of specialized vehicles is available for fast delivery!
Delivery time
In-stock vehicles can be delivered within 1-3 days; customized models will be delivered according to the contract timeframe!
| Main technical parameters | |||
|---|---|---|---|
| Product Name: | Liuzhou Motor 2-axle refrigerated truck | ||
| External dimensions: | 9200×2600×3900,4000(mm) | ||
| Emission levels: | National VI | ||
| Cargo box dimensions: | 6800×2420×2450(mm) | ||
| Total mass: | 18000(Kg) | ||
| Approach/Departure Angle: | 20/10(°) | ||
| Rated weight: | 9865(Kg) | ||
| Front overhang and rear overhang: | 1445/2655(mm) | ||
| Curb weight: | 8005(Kg) | ||
| Maximum speed: | 90,80(km/h) | ||
| Chassis parameters | |||
| Fuel type: | diesel fuel | ||
| Chassis model: | LZ5180XXYH5ACT | ||
| Number of axes: | 2 | ||
| Front track: | 1916,1956,2040,2080(mm) | ||
| Wheelbase: | 5100,5700,6300,7100,4700,4500,7300,5300(mm) | ||
| Rear track: | 1800,1860(mm) | ||
| Number of passengers in the driver's cab: | (people) | ||
| Number of leaf springs: | 11/12+9,2/3+2,3/4+3,2/12+9,8/9+5,2/9+5,3/12+9,3/9+5,3/3+3,3/-,-/-,8/7+6,3/7+6,8/7+3,3/7+3, 2/2+2 | ||
| Number of tires: | 6 (items) | ||
| Axle load: | 6500/11500 | ||
| Tire specifications: | 10.00R20 18PR,275/80R22.5 18PR,295/80R22.5 18PR,295/60R22.5 18PR,315/60R22.5 18PR | ||
| Engine parameters | |||
|---|---|---|---|
| Engine model: | Engine manufacturers | Displacement (ml) | Power (kW) / Horsepower (PS): |
| B6.2NS6B260 | Dongfeng Cummins Engine Co., Ltd. | 6200 | 191/259 |
| YCS06245-60A | Guangxi Yuchai Machinery Co., Ltd. | 6234 | 180/244 |
| YCS06270-60 | Guangxi Yuchai Machinery Co., Ltd. | 6234 | 199/270 |
| D6.7NS6B320 | Dongfeng Cummins Engine Co., Ltd. | 6700 | 231/314 |
| D6.7NS6B290 | Dongfeng Cummins Engine Co., Ltd. | 6700 | 213/289 |
| B6.2NS6B245 | Dongfeng Cummins Engine Co., Ltd. | 6200 | 180/244 |
| YCS06290-61 | Guangxi Yuchai Machinery Co., Ltd. | 6442 | 213/289 |
| YCK05260-61 | Guangxi Yuchai Machinery Co., Ltd. | 5132 | 191/259 |
| YCS06290-61A | Guangxi Yuchai Machinery Co., Ltd. | 6442 | 213/289 |
| YCS07L300-66 | Guangxi Yuchai Machinery Co., Ltd. | 6442 | 221/300 |
| YCS07330-66 | Guangxi Yuchai Machinery Co., Ltd. | 6890 | 243/330 |
| YCS07350-66 | Guangxi Yuchai Machinery Co., Ltd. | 6890 | 255/346 |
| B6.2NS6B290 | Dongfeng Cummins Engine Co., Ltd. | 6200 | 213/289 |
| D7.0NS6B330 | Dongfeng Cummins Engine Co., Ltd. | 7000 | 243/330 |
| D7.0NS6B350 | Dongfeng Cummins Engine Co., Ltd. | 7000 | 257/349 |
| D4.5NS6B240 | Dongfeng Cummins Engine Co., Ltd. | 4500 | 176/239 |
| YCK05270-66A | Guangxi Yuchai Machinery Co., Ltd. | 5132 | 199/270 |
| YCS07338-66 | Guangxi Yuchai Machinery Co., Ltd. | 6890 | 248/337 |
| other | |||
|---|---|---|---|
| 车厢顶部封闭不可开启;选装ETC车载装置;配装具有卫星定位功能的行驶记录仪;ABS型号/企业:ABS-E 4S/4M/威伯科汽车控制系统(中国)有限公司,CM4XL-4S/4M/广州瑞立科密汽车电子股份有限公司,ABS 8/东科克诺尔商用车制动系统(十堰)有限公司;选装限速装置,限速80km/h,90km/h;随底盘选装驾驶室;随底盘选装底盘布局,选装同等功率制冷机组,外观形状可不同,选装货厢开门形式,厢板可为平板或彩板结构,选装肉挂结构选装防护样式;发动机/油耗值(L/100km)对应关系为:YCS06245-60A/26.43,YCS06270-60/26.43,B6.2NS6B230/26.51,B6.2NS6B260/26.51;侧、后防护材料均为Q235,侧防护螺栓连接,后防护焊接连接,后防护截面尺寸(mm):120×55,后防护离地高度(mm):480.选装防护样式。 |
