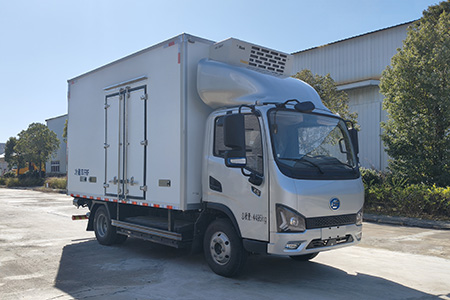

2-axle pure electric refrigerated truck
Category:Refrigerated truck
1.电池单体种类/型号/生产企业:磷酸铁锂电池/0JFCBB5A/武汉弗迪电池有限公司,储能装置总成型号:B23,生产企业为弗迪电池有限公司;2.驱动电机类型为永磁同步电机,电机额定功率:70kW,电机峰值功率:140kW,驱动电机型号为:TZ220XS070...
Sufficient stock available
A large fleet of specialized vehicles is available for fast delivery!
Delivery time
In-stock vehicles can be delivered within 1-3 days; customized models will be delivered according to the contract timeframe!
| Main technical parameters | |||
|---|---|---|---|
| Product Name: | 2-axle pure electric refrigerated truck | ||
| External dimensions: | 5995×2260×2920,3060,3160,3240,3430(mm) | ||
| Emission levels: | — | ||
| Cargo box dimensions: | 4100×2100×1810,1950,2050,2180,2300(mm) | ||
| Total mass: | 4495(Kg) | ||
| Approach/Departure Angle: | 23/21,23/18(°) | ||
| Rated weight: | 850(Kg) | ||
| Front overhang and rear overhang: | 1175/1430(mm) | ||
| Curb weight: | 3450(Kg) | ||
| Maximum speed: | 90(km/h) | ||
| Chassis parameters | |||
| Fuel type: | pure electric | ||
| Chassis model: | HQG1040EVD53 | ||
| Number of axes: | 2 | ||
| Front track: | 1625(mm) | ||
| Wheelbase: | 3390(mm) | ||
| Rear track: | 1570(mm) | ||
| Number of passengers in the driver's cab: | (people) | ||
| Number of leaf springs: | 3/3+3,3/2+1,3/3+1,3/3+2,3/5+2,7/5+6,2/2+1,2/2+2,2/3+1,2/3+2,3/2+2,3/4+2,3/4+3,3/1+1,2/1+1,5/5+3 | ||
| Number of tires: | 6 (items) | ||
| Axle load: | 1900/2595 | ||
| Tire specifications: | 7.00R16LT 8PR,7.00R16LT 10PR | ||
| Engine parameters | |||
|---|---|---|---|
| Engine model: | Engine manufacturers | Displacement (ml) | Power (kW) / Horsepower (PS): |
| TZ220XS070 | Yuchai Xinlan New Energy Power Technology Co., Ltd. | 0 | 140/190 |
| other | |||
|---|---|---|---|
| 1.电池单体种类/型号/生产企业:磷酸铁锂电池/0JFCBB5A/武汉弗迪电池有限公司,储能装置总成型号:B23,生产企业为弗迪电池有限公司;2.驱动电机类型为永磁同步电机,电机额定功率:70kW,电机峰值功率:140kW,驱动电机型号为:TZ220XS070,电机生产企业:玉柴芯蓝新能源动力科技有限公司,电机控制器型号为:KTZ54X32SU,电机控制器生产企业为:江苏吉泰科电气股份有限公司;3.ABS系统生产厂家/型号:浙江万安科技股份有限公司/VIE ABS-II;4.可选装直接供电ETC车载装置;5. 随底盘选装不带导流罩;6.车辆侧后防护材料材质为Q235,侧防护为螺栓连接,后防护为螺栓连接,后防护截面尺寸为100x50(mm),下边缘离地高度为475mm;7.货厢重量:715kg,材质为玻璃钢+XPS挤塑板,顶板、底板、前板厚度为100mm,后板、边板厚度为80mm;8.整备质量对应的配件配备情况:包含防冻液,清洗液,不包括备胎,灭火器及随车工具;9.车辆选装液压尾板,尾板质量为350Kg,尾板收起状态的水平长度为280mm,安装带尾板时,后防护离地高度:355mm,后防护材料为Q235,截面为直径115mm圆柱体,后防护连接方式为螺栓连接;10.车厢顶部封闭不可开启;11.选装同等功率的制冷机组。 |
