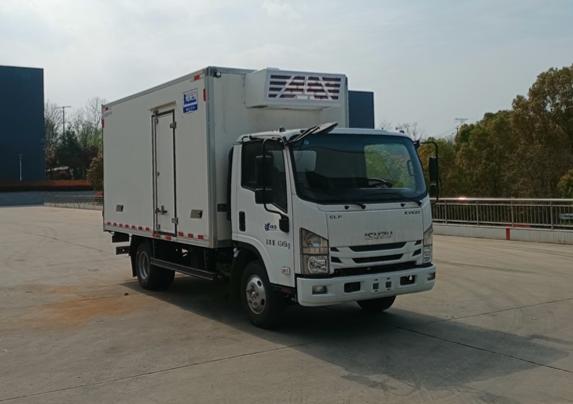

Qingling 2-axle refrigerated truck
Category:Refrigerated truck
1.该车顶部封闭,不可开启;2.发动机/油耗值(L/100km))对应关系为:4KB1-TCG60/10.22,4KH1CN6LB/10.16,4KH1N6MD/10.14,4KK1N6HD/10.21;3.侧防护材料:Q235,连接方式:螺栓连接在车厢底板及...
Sufficient stock available
A large fleet of specialized vehicles is available for fast delivery!
Delivery time
In-stock vehicles can be delivered within 1-3 days; customized models will be delivered according to the contract timeframe!
| Main technical parameters | |||
|---|---|---|---|
| Product Name: | Qingling 2-axle refrigerated truck | ||
| External dimensions: | 5998×2260×3220(mm) | ||
| Emission levels: | National VI | ||
| Cargo box dimensions: | 4100×2100×2100(mm) | ||
| Total mass: | 4345(Kg) | ||
| Approach/Departure Angle: | 19/16(°) | ||
| Rated weight: | 1050(Kg) | ||
| Front overhang and rear overhang: | 1110/1528(mm) | ||
| Curb weight: | 3100(Kg) | ||
| Maximum speed: | 105,115(km/h) | ||
| Chassis parameters | |||
| Fuel type: | diesel fuel | ||
| Chassis model: | QL1043BUHAY | ||
| Number of axes: | 2 | ||
| Front track: | 1690,1685(mm) | ||
| Wheelbase: | 3360(mm) | ||
| Rear track: | 1655,1525,1545(mm) | ||
| Number of passengers in the driver's cab: | (people) | ||
| Number of leaf springs: | 8/6+5,3/3+2,2/3+2,1/1+1 | ||
| Number of tires: | 6 (items) | ||
| Axle load: | 1700/2645 | ||
| Tire specifications: | 7.00R16LT 8PR,7.00R16LT 10PR,6.50R16LT 10PR | ||
| Engine parameters | |||
|---|---|---|---|
| Engine model: | Engine manufacturers | Displacement (ml) | Power (kW) / Horsepower (PS): |
| 4KH1CN6LB | Isuzu (China) Engine Co., Ltd. | 2999 | 88/119 |
| 4KH1N6MD | Isuzu (China) Engine Co., Ltd. | 2999 | 103/140 |
| 4KB1-TCG60 | Isuzu (China) Engine Co., Ltd. | 2499 | 96/130 |
| 4KK1N6HD | Isuzu (China) Engine Co., Ltd. | 2499 | 118/160 |
| other | |||
|---|---|---|---|
| 1.该车顶部封闭,不可开启;2.发动机/油耗值(L/100km))对应关系为:4KB1-TCG60/10.22,4KH1CN6LB/10.16,4KH1N6MD/10.14,4KK1N6HD/10.21;3.侧防护材料:Q235,连接方式:螺栓连接在车厢底板及副梁上;后防护材料:Q235,连接方式:以螺栓连接在车架纵梁尾端,后防护断面尺寸:140×50(mm),离地高度:450mm;4.该车随底盘装气压制动系统,ABS及其控制器型号/生产企业对应关系为:CM4XL-4S/4M/广州瑞立科密汽车电子股份有限公司,随底盘选装液压制动系统时,ABS及其控制器型号/生产企业对应关系为:APG3550500A/浙江亚太机电股份有限公司,CM4YL/广州瑞立科密汽车电子股份有限公司;5.整备质量包括随车工具,不含备胎,厢体重量(含侧防护和挡泥板):718Kg,货厢材质:玻璃钢+XPS,厚度:80(mm);6.该车型可选装ETC车载装置. |
