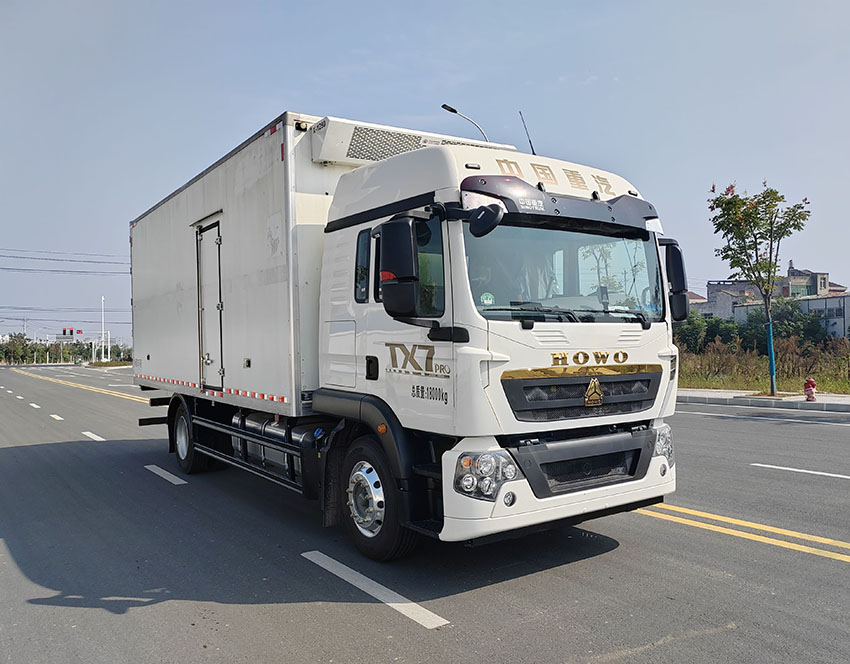

Sinotruk 2-axle refrigerated truck
Category:Refrigerated truck
货厢顶部封闭,不可开启;侧防护采用Q235,螺栓连接;后防护采用Q235,焊接连接。后防护截面高度尺寸120mm, 截面宽度尺寸80mm,下边缘离地高度450mm。选装限速装置,限速89km/h.ABS系统控制器生产企业/型号为威伯科(上海)管理有限公司/44...
Sufficient stock available
A large fleet of specialized vehicles is available for fast delivery!
Delivery time
In-stock vehicles can be delivered within 1-3 days; customized models will be delivered according to the contract timeframe!
| Main technical parameters | |||
|---|---|---|---|
| Product Name: | Sinotruk 2-axle refrigerated truck | ||
| External dimensions: | 9200,9430,9750,10200,10400×2550,2600×3900,3980(mm) | ||
| Emission levels: | National VI | ||
| Cargo box dimensions: | 6800,7800×2390,2440×2400,2500(mm) | ||
| Total mass: | 18000(Kg) | ||
| Approach/Departure Angle: | 19/7,19/8,19/9(°) | ||
| Rated weight: | 10120,10055,9370,9305(Kg) | ||
| Front overhang and rear overhang: | 1430/3370,1430/3170,1430/2720,1430/2570,1430/2800,1430/2770(mm) | ||
| Curb weight: | 7750,8500(Kg) | ||
| Maximum speed: | 89.101(km/h) | ||
| Chassis parameters | |||
| Fuel type: | diesel fuel | ||
| Chassis model: | ZZ1187K501GF1 | ||
| Number of axes: | 2 | ||
| Front track: | 1950,2035,1910,1930,2060(mm) | ||
| Wheelbase: | 3800,4200,4500,4700,5000,5200,5600,5800,4000,5400,6000,3600(mm) | ||
| Rear track: | 1848,1860,1880(mm) | ||
| Number of passengers in the driver's cab: | (people) | ||
| Number of leaf springs: | 11/9+8,3/9+8,3/3+2,2/3+2,3/-,2/-,2/3,7/7+6,7/7+3,3/7+6,3/7+3,3/3+3,9/9+6,10/9+8,11/- | ||
| Number of tires: | 6 (items) | ||
| Axle load: | 6500/11500 | ||
| Tire specifications: | 295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR,10.00R20 18PR,275/80R22.5 18PR,11R22.5 18PR,295/60R22.5 18PR | ||
| Engine parameters | |||
|---|---|---|---|
| Engine model: | Engine manufacturers | Displacement (ml) | Power (kW) / Horsepower (PS): |
| WP7H245E62 | Weichai Power Co., Ltd. | 6800 | 180/244 |
| WP7H270E62 | Weichai Power Co., Ltd. | 6800 | 199/270 |
| WP7H300E62 | Weichai Power Co., Ltd. | 6800 | 221/300 |
| MC07.25-61 | China National Heavy Duty Truck Group Co., Ltd. | 6870 | 190/258 |
| MC07.27-61 | China National Heavy Duty Truck Group Co., Ltd. | 6870 | 202/274 |
| MC07.29-61 | China National Heavy Duty Truck Group Co., Ltd. | 6870 | 213/289 |
| WP4.6NQ240E62 | Weichai Power Co., Ltd. | 4580 | 177/240 |
| WP5NQ245E62 | Weichai Power Co., Ltd. | 4580 | 177/240 |
| MC05H.28-61 | China National Heavy Duty Truck Group Co., Ltd. | 4910 | 206/280 |
| MC05H.26-61 | China National Heavy Duty Truck Group Co., Ltd. | 4910 | 191/259 |
| MC05H.24-61 | China National Heavy Duty Truck Group Co., Ltd. | 4910 | 176/239 |
| WP7H320E62 | Weichai Power Co., Ltd. | 6800 | 235/319 |
| WP6T260E62 | Weichai Power Co., Ltd. | 5496 | 191/259 |
| WP6T280E62 | Weichai Power Co., Ltd. | 5496 | 206/280 |
| WP6T290E62 | Weichai Power Co., Ltd. | 5496 | 213/289 |
| WP6T300E62 | Weichai Power Co., Ltd. | 5496 | 221/300 |
| WP6T320E62 | Weichai Power Co., Ltd. | 5496 | 230/312 |
| WP5H280E62 | Weichai Power Co., Ltd. | 4950 | 206/280 |
| WP5H300E62 | Weichai Power Co., Ltd. | 4950 | 221/300 |
| WP5H260E62 | Weichai Power Co., Ltd. | 4950 | 191/259 |
| MC07.27-60 | China National Heavy Duty Truck Group Co., Ltd. | 6870 | 202/274 |
| other | |||
|---|---|---|---|
| 货厢顶部封闭,不可开启;侧防护采用Q235,螺栓连接;后防护采用Q235,焊接连接。后防护截面高度尺寸120mm, 截面宽度尺寸80mm,下边缘离地高度450mm。选装限速装置,限速89km/h.ABS系统控制器生产企业/型号为威伯科(上海)管理有限公司/4460046300,广州瑞立科密汽车电子股份有限公司/CM4XL-4S/4M;选装EBS,EBS系统控制器生产企业/型号为威伯科(上海)管理有限公司/EBS3;安装具有卫星定位功能的行驶记录仪。发动机型号/油耗申报值(L/100km)对应关系为:MC07.27-60/26.91,WP4.6NQ220E61/26.07,WP6H245E61/26.32,MC05H.25-60/25.35,WP6H270E61/25.34,WP7H300E62/22.06,WP4.6NQ240E62/25.90,MC07.29-61/26.08,WP6T300E62/25.78.主要专用装置为厢体和冷藏机组。选装采用直接供电方式的ETC车载装置.整车长/轴距/后悬对应关系为:10400/5600/3370,10200/5600/3170,9750/5600/2720,9430/5200/2800,9200/5200/2570,9200/5000/2770;仅采用275/80R22.5 18PR,10.00R20 18PR轮胎,仅采用后悬架为钢板弹簧.随底盘选装驾驶室,选装侧面箱门型式.选装后门样式.选装制冷量相同的制冷机组. |
Product customization
If you cannot find a suitable product, you can also leave us a message and write down the product configuration you need. We will reply to you within 1-2 business days after receiving your message!
