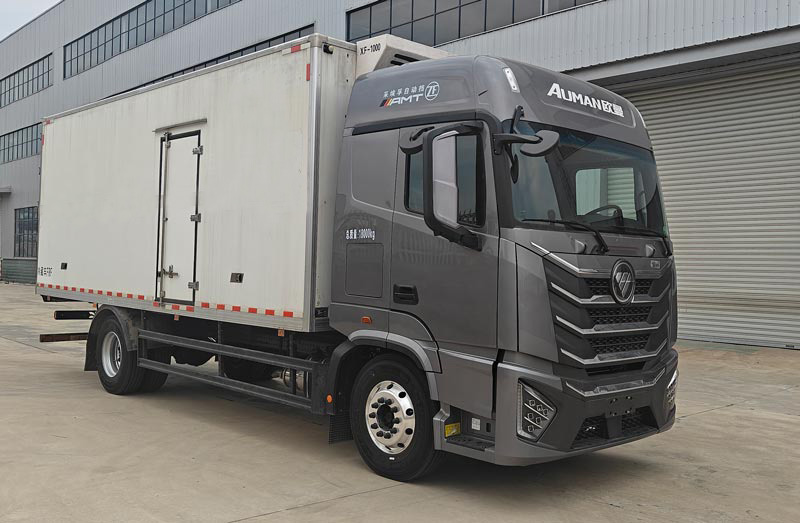

Foton 2-axle refrigerated truck
Category:Refrigerated truck
该车主要专用装置为厢体和冷藏机组,货厢顶部封闭,不可开启;侧防护采用Q235,螺栓连接;后防护采用Q235,焊接连接;后防护截面高度尺寸120mm,截面宽度尺寸80mm,下边缘离地高度450mm.安装限速装置,限速89km/h.ABS系统型号/生产企业:ABS...
Sufficient stock available
A large fleet of specialized vehicles is available for fast delivery!
Delivery time
In-stock vehicles can be delivered within 1-3 days; customized models will be delivered according to the contract timeframe!
| Main technical parameters | |||
|---|---|---|---|
| Product Name: | Foton 2-axle refrigerated truck | ||
| External dimensions: | 9200,9400,9500,10200×2550,2600×3900,3980(mm) | ||
| Emission levels: | National VI | ||
| Cargo box dimensions: | 6800,7800×2390,2440×2400,2500(mm) | ||
| Total mass: | 18000(Kg) | ||
| Approach/Departure Angle: | 16/10,16/9,16/7(°) | ||
| Rated weight: | 9920,9170(Kg) | ||
| Front overhang and rear overhang: | 1460/2440,1460/2640,1460/2740,1460/3440(mm) | ||
| Curb weight: | 7950,8700(Kg) | ||
| Maximum speed: | 89(km/h) | ||
| Chassis parameters | |||
| Fuel type: | diesel fuel | ||
| Chassis model: | BJ1189Y6ANL-08 | ||
| Number of axes: | 2 | ||
| Front track: | 2020,2050,2080,2110,2035,2060(mm) | ||
| Wheelbase: | 4800,5300,5900,7100,4200,4500,4700,5000,5150,5800,6000,7300(mm) | ||
| Rear track: | 1840,1860,1805,1820(mm) | ||
| Number of passengers in the driver's cab: | (people) | ||
| Number of leaf springs: | 3/4+3,3/10+3,3/10+8,10/10+8,3/-,10/10+3,3/3+2,3/3+3,2/-,9/10+8,2/3+2,8/8+3,7/7+3,8/7+3,7/8+3,8/10+8,8/8+8 | ||
| Number of tires: | 6 (items) | ||
| Axle load: | 6500/11500 | ||
| Tire specifications: | 11R22.5 18PR,275/80R22.5 18PR,295/80R22.5 18PR,295/60R22.5 18PR,10.00R20 18PR | ||
| Engine parameters | |||
|---|---|---|---|
| Engine model: | Engine manufacturers | Displacement (ml) | Power (kW) / Horsepower (PS): |
| YCS06300-61 | Guangxi Yuchai Machinery Co., Ltd. | 6442 | 221/300 |
| A7NS6B300 | Beijing Foton Cummins Engine Co., Ltd. | 7000 | 221/300 |
| A7NS6B330 | Beijing Foton Cummins Engine Co., Ltd. | 7000 | 243/330 |
| A7NS6B350 | Beijing Foton Cummins Engine Co., Ltd. | 7000 | 257/349 |
| YCS07350-66 | Guangxi Yuchai Machinery Co., Ltd. | 6890 | 255/346 |
| YCS07L300-66 | Guangxi Yuchai Machinery Co., Ltd. | 6442 | 221/300 |
| YCS07330-66 | Guangxi Yuchai Machinery Co., Ltd. | 6890 | 243/330 |
| A7NS6B380 | Beijing Foton Cummins Engine Co., Ltd. | 7000 | 279/379 |
| YCS07390-66 | Guangxi Yuchai Machinery Co., Ltd. | 6890 | 287/390 |
| YCS07400-66 | Guangxi Yuchai Machinery Co., Ltd. | 6890 | 294/399 |
| A8.5NS6B360 | Beijing Foton Cummins Engine Co., Ltd. | 8500 | 264/359 |
| A8.5NS6B400 | Beijing Foton Cummins Engine Co., Ltd. | 8500 | 294/399 |
| other | |||
|---|---|---|---|
| 该车主要专用装置为厢体和冷藏机组,货厢顶部封闭,不可开启;侧防护采用Q235,螺栓连接;后防护采用Q235,焊接连接;后防护截面高度尺寸120mm,截面宽度尺寸80mm,下边缘离地高度450mm.安装限速装置,限速89km/h.ABS系统型号/生产企业:ABS-E/采埃孚商用车系统(青岛)有限公司,ABS/ASR-24V-4S/4M/东科克诺尔商用车制动系统(十堰)有限公司,CM4XL-4S/4M/广州瑞立科密汽车电子股份有限公司,CM-ESC/广州瑞立科密汽车电子股份有限公司.安装具有卫星定位功能的行驶记录仪.发动机型号/油耗申报值(L/100km)对应关系为:YCS06300-61/25.93,A7NS6B300/24.19,A7NS6B330/24.19,A7NS6B350/24.19.该车型可选装直接供电方式ETC车载装置.仅采用5300mm轴距底盘改装,整车长/后悬对应关系为(mm):9200/2440,9400/2640,9500/2740,10200/3440.仅采用11R22.5 18PR,275/80R22.5 18PR,295/80R22.5 18PR轮胎,仅采用钢板弹簧悬架.随底盘选装驾驶室、燃油箱、工具箱外观.选装货厢型式.选装制冷量相同的制冷机组. |
