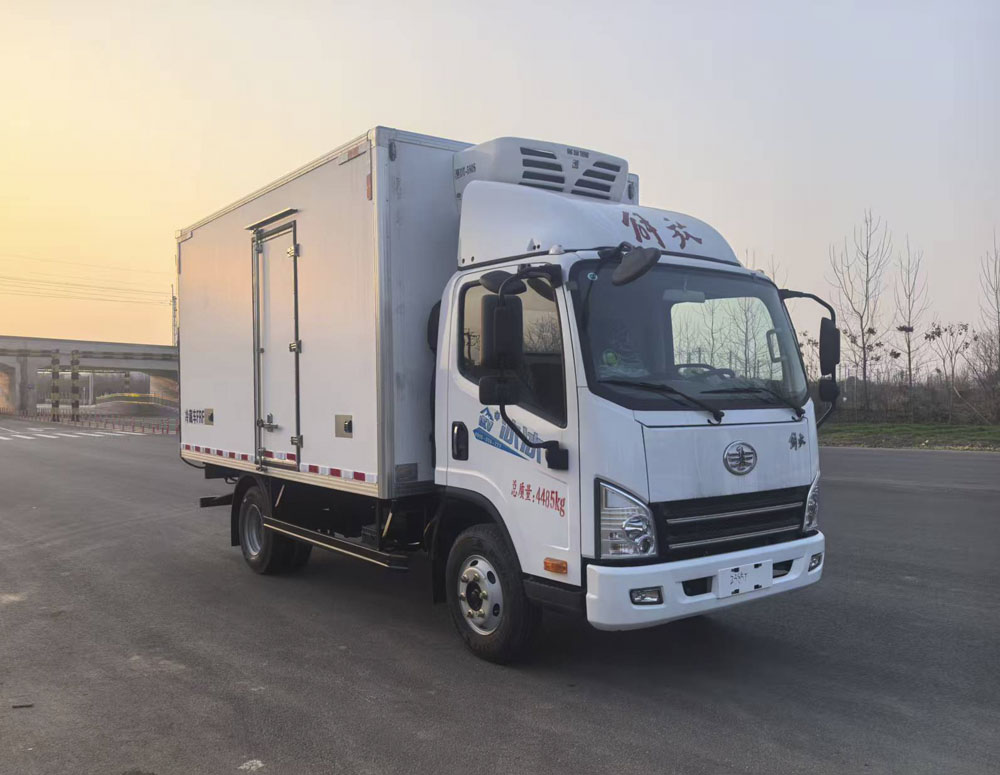

Jiefang 2-axle Refrigerated Truck_Refrigerated Trucks_Other Models_Product Center_China Truck Show

chinatruckplant.com

Category:Refrigerated truck

车厢顶部封闭,不可开启;主要装置为:制冷装置;侧防护及后下部防护装置的材质为:Q235B,侧防护连接方式为:螺栓加焊接连接,后下部防护连接方式为:螺栓加焊接连接;后下部防护离地高度:450mm,断面尺寸为100mm×40mm;ABS防抱死制动系统生产厂家/型号...

A large fleet of specialized vehicles is available for fast delivery!

In-stock vehicles can be delivered within 1-3 days; customized models will be delivered according to the contract timeframe!

Main technical parameters
Product Name:	Jiefang 2-axle refrigerated truck
External dimensions:	5995×2260×3270(mm)
Emission levels:	National VI
Cargo box dimensions:	4050×2100×2100(mm)
Total mass:	4485(Kg)
Approach/Departure Angle:	13/15(°)
Rated weight:	1090(Kg)
Front overhang and rear overhang:	1115/1580(mm)
Curb weight:	3200(Kg)
Maximum speed:	105(km/h)
Chassis parameters
Fuel type:	diesel fuel
Chassis model:	CA1044P40K56L2BE6A84
Number of axes:	2
Front track:	1601,1649,1654,1668,1704,1714,1738,1761,1771(mm)
Wheelbase:	3300(mm)
Rear track:	1525,1537,1569,1581,1590,1602,1662,1674,1640,1740,1800(mm)
Number of passengers in the driver's cab:	(people)
Number of leaf springs:	3/3,2/3+2,3/3+1,3/3+2,3/3+3,3/4+3,3/4+4,3/7+3,3/7+9,3/10+3,3/10+4,2/2+1,2/2+2,2/7+2,3/8+8,3/8+7,3/5+2,7/10+4,7/12+8
Number of tires:	6 (items)
Axle load:	1950/2535
Tire specifications:	6.50R16LT 10PR,6.50R16LT 12PR,7.00R16LT 8PR

other
车厢顶部封闭,不可开启;主要装置为:制冷装置;侧防护及后下部防护装置的材质为:Q235B,侧防护连接方式为:螺栓加焊接连接,后下部防护连接方式为:螺栓加焊接连接;后下部防护离地高度:450mm,断面尺寸为100mm×40mm;ABS防抱死制动系统生产厂家/型号:1.广州瑞立科密汽车电子股份有限公司/CM4XL-4S/4M;2.浙江万安科技股份有限公司/VIE ABS-II.该车型可选装ETC车载装置.发动机/油耗值(L/100km)为:490PLUS150/10.29,490PLUS1/10.29,YN25PLUS160B/10.29;该车型整备质量包含随车工具,备胎,不包含灭火器.货箱重量(含制冷机组、侧防护、副梁等);货厢重量为:981kg,车厢材质:玻璃钢+聚氨酯,货厢厚度(左板/右板/顶板/底板/后门/前板)为:80mm/80mm/80mm/80mm/80mm/80mm;
