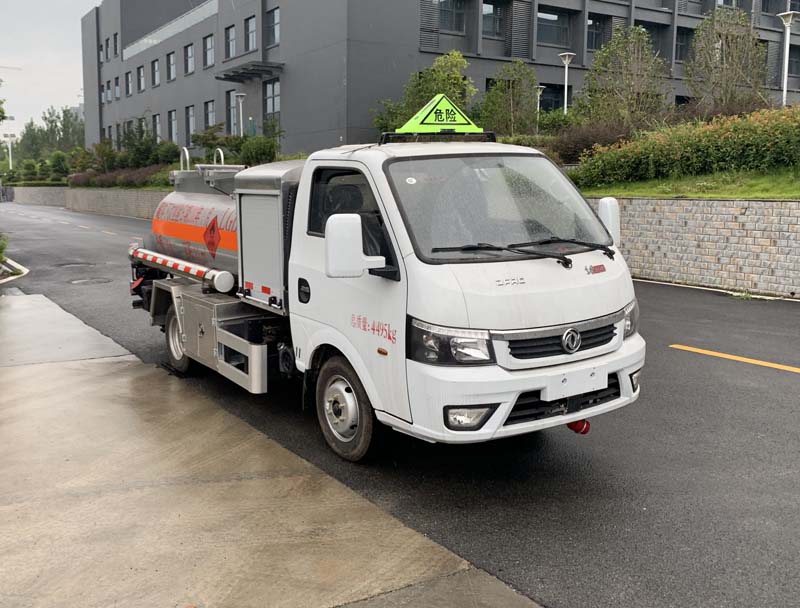

Dongfeng 2.3 cubic meter refueling truck
Category:fuel truck
This vehicle is suitable for transporting dangerous goods. Vehicle type: FL. Maximum permitted medium density: 700 kg/m³. Total tank capacity: 2.3 m³. Effective tank volume: 2.19 m³. Tank dimensions (length × width × height) (mm): 3200 × 1200 × 850. Side and rear protective materials are Q235, bolted connections. Rear protective section dimensions: 50 × 1...
Sufficient stock available
A large fleet of specialized vehicles is available for fast delivery!
Delivery time
In-stock vehicles can be delivered within 1-3 days; customized models will be delivered according to the contract timeframe!
| Main technical parameters | |||
|---|---|---|---|
| Product Name: | Dongfeng 2.3 cubic meter refueling truck | ||
| External dimensions: | 5500×2030×2350(mm) | ||
| Emission levels: | National VI | ||
| Cargo box dimensions: | ××(mm) | ||
| Total mass: | 4495(Kg) | ||
| Approach/Departure Angle: | 21/14(°) | ||
| Rated weight: | 1535(Kg) | ||
| Front overhang and rear overhang: | 1170/1580,1200/1550(mm) | ||
| Curb weight: | 2830(Kg) | ||
| Maximum speed: | 80(km/h) | ||
| Chassis parameters | |||
| Fuel type: | diesel fuel | ||
| Chassis model: | EQ1040GL6DJ1 | ||
| Number of axes: | 2 | ||
| Front track: | 1525,1530,1565,1600,1645,1655(mm) | ||
| Wheelbase: | 2750(mm) | ||
| Rear track: | 1510,1520,1580,1550,1564(mm) | ||
| Number of passengers in the driver's cab: | (people) | ||
| Number of leaf springs: | 6/6+5,3/3+3,5/4+3,6/5+2,6/3+3,3/6+5,3/3+2,3/4+3,3/5,2/3,3/4 | ||
| Number of tires: | 6 (items) | ||
| Axle load: | 1800/2695 | ||
| Tire specifications: | 6.50R16LT 12PR,6.50R16LT 10PR,7.00R16LT 8PR | ||
| Engine parameters | |||
|---|---|---|---|
| Engine model: | Engine manufacturers | Displacement (ml) | Power (kW) / Horsepower (PS): |
| Q23A-142E60 | Anhui Quanchai Power Co., Ltd. | 2300 | 103/140 |
| other | |||
|---|---|---|---|
| This vehicle is suitable for transporting dangerous goods. Vehicle type: FL. Maximum permitted medium density: 700 kg/m³. Total tank capacity: 2.3 m³. Effective tank volume: 2.19 m³. Tank dimensions (length × width × height) (mm): 3200 × 1200 × 850. Side and rear protective materials are Q235, bolted connection. Rear protective section dimensions: 50 × 100 mm. Lower edge ground clearance: 380 mm. Fuel dispenser model and manufacturer: BL1111Z/Zhuhai Beilin Fueling Equipment Co., Ltd. Mountain Branch, HS1812B/Token Hengshan Technology (Guangzhou) Co., Ltd., SKES-1112/Henghe Jiahe Technology Co., Ltd. (Shanghai Bolai Machinery Co., Ltd.), SK20QF-111A, SK20QF-222A/Zhengzhou Sanjin Petroleum Equipment Manufacturing Co., Ltd., CS20D1110F/Zhengxing Technology Co., Ltd., JSK-70B1121CZ, JSK-70B1121C, JSK45B1121C/Wenjialijia (Beijing) Petrochemical Equipment Co., Ltd., Z H6444, ZH3111P/Foshan Zhongze Electromechanical Technology Co., Ltd., XTST121BF1/Xingtai Zhengruntong Technology Development Co., Ltd., TA-1111KFJ/Shenyang Aerospace Xinyang Electromechanical Co., Ltd., HT-CZ1111/Hubei Huatai Special Equipment Co., Ltd., ZY181111/Anhui Zhongyuan Instrument Co., Ltd., FBXO(EX), ACZS-1112, ACZS-1111/Yongjia Aocheng Hardware Products Co., Ltd., BL1211Z/Guangdong Beilin Energy Equipment Limited Liability Company, BJJ-20-AH2/Anhui Ruiling Measuring Instrument Manufacturing Co., Ltd. This vehicle can be equipped with a direct-powered ETC on-board unit. Only chassis with a front-mounted exhaust pipe, speed limiter (80km/h), front disc brakes, and radial tires are selected. Tire blowout emergency protection devices are installed on the steering wheels. The vehicle's curb weight includes a fire extinguisher, on-board tools, and a spare tire. A driving recorder with satellite positioning function is installed. ABS model and manufacturer: 3550D-1010C2000/Dongfeng Welfare Enterprise Company, J ABS/Jiaozuo Boruike Control Technology Co., Ltd. |
